TwisterPump's capability of handling well viscous and shear-sensitive liquids at low rotation speeds combined with low energy consumption and strong wear resistance make it a smart and reliable choice for the food processing industry. TwisterPump can be used for pumping actual food products and their ingredients, liquid or solid, as well as other mediums used in food processing.
| Parameter | Value |
|---|---|
| Type | Positive displacement |
| Approach | Rotary-piston slide-rotor |
| Design pressure [bar] | 16 |
| Suction pressure [bar] | - 0.92 |
| Capacity [m³/h] | Up to 250 |
| Fluid temperature [°C] | Up to 180 |
| Ambient temperature [°C] | - 30 to 70 |
| Particle size [mm] | Up to 2.5 |
| Viscosity [mPa·s] | Up to 250,000 |
| Parameter | TP 065 | TP 092 | TP 116 | TP 130 | TP 195 | TP 260 |
|---|---|---|---|---|---|---|
| Max. capacity [m³/h] | 3 | 10 | 20 | 30 | 60 | 120 |
| Design pressure [bar] | 16 | 16 | 16 | 16 | 16 | 16 |
| Suction pressure [bar] | - 0.92 | - 0.92 | - 0.92 | - 0.92 | - 0.92 | - 0.92 |
| Min. / max. rotational speed [RPM] | 30 / 1,000 | 50 / 1,000 | 50 / 1,000 | 50 / 1,000 | 50 / 600 | 50 / 500 |
| Volume [l] per revolution circle | 0.05 | 0.17 | 0.33 | 0.50 | 1.67 | 4.00 |
| Port size | 2’’ / BSP | DN65 / PN16 | DN100 / PN16 | DN100 / PN16 | DN150 / PN16 | DN200 / PN16 |
| Weight [kg] | 25 | 33 | 64 | 65 | 159 | 315 |

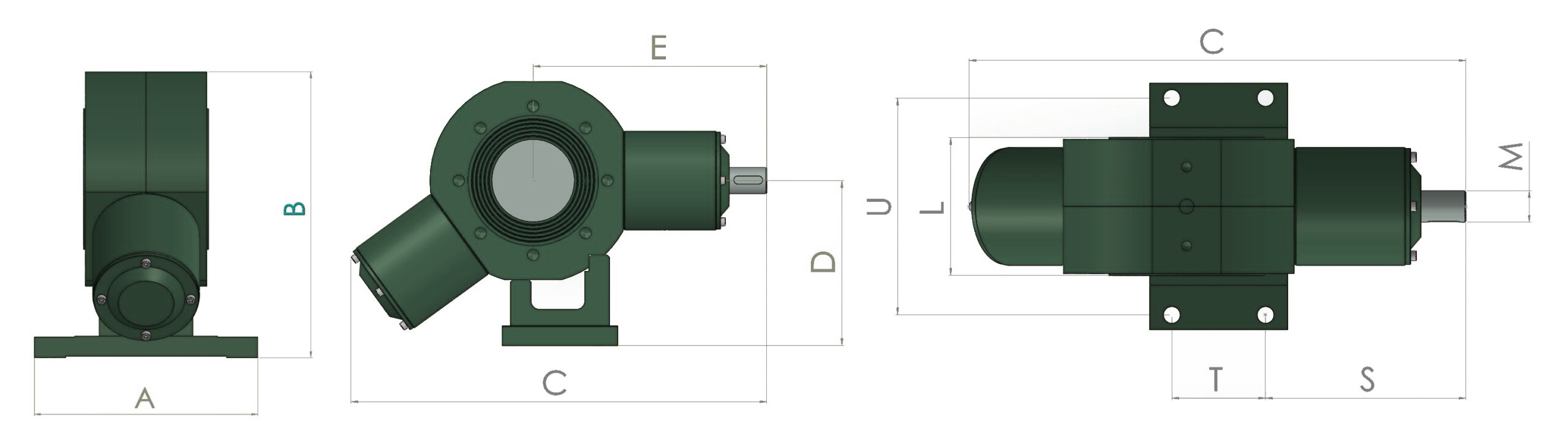

| Dimensions | TP 065 | TP 092 | TP 116 | TP 130 | TP 195 | TP 260 |
|---|---|---|---|---|---|---|
| A [mm] | 175 | 175 | 250 | 250 | 248 | 390 |
| B [mm] - Height | 220 | 248 | 325 | 325 | 421 | 556 |
| C [mm] - Length | 382 | 426 | 512 | 512 | 712 | 927 |
| D [mm] - Port/shaft centre height | 140 | 158 | 200 | 200 | 260 | 325 |
| L [mm] - Width | 100 | 106 | 140 | 140 | 200 | 270 |
| M [mm] | 22 | 28 | 32 | 32 | 40 | 60 |
| S [mm] | 166 | 184 | 211 | 211 | 300 | 406 |
| T [mm] | 65 | 65 | 95 | 95 | 120 | 179 |
| U [mm] | 150 | 150 | 220 | 220 | 220 | 340 |
| Weight [kg] | 25 | 33 | 64 | 65 | 159 | 315 |
